??? 128 ???? ????? ????? ?????????? ?????? ??????? ????? ???????? ?????? ???????? ?????
K864
| ???? ????? | ?????? ?????? | ??????????? |
| ?????? ?????? | 1.0 m/sec | 3 ft/sec |
| ???? ???? ??????? | -45℃~+110℃ | -50℉~+230℉ |
| ????? ????? | μmRa | μmRt | μinClA | μinRMS |
| ??? ????? ??????????Φd1 | 0.1<>0.4 | 4 max | 4<>16 | 5<>18 |
| ??? ??? ????ΦD1 | 1.6 max | 10 max | 63 max | 70 max |
| ??? ???? ????L1 | 3.2 max | 16 max | 125 max | 140 max |
| ??????? ???? ????? | ||
| ??? ???? ?????? | ≤19 | >19 |

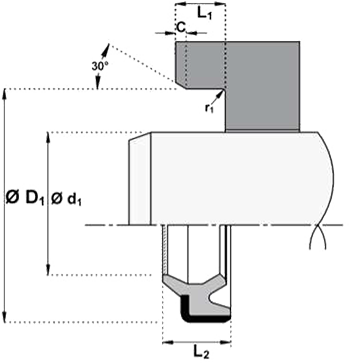

| ???? ?????? ?? ????? C in | 0.5 | 1.0 |
| ???? ??? ??? ?????? r1 mm | 0.4 | 0.4 |
| ??????? | Φd1 | ΦD1 | L1 |
| f9 | H8 | +0.5 -0 |
????? ??????
?????? ? 864 ????? ?? ???? ???? ?????? ????? ????? ???? ?? ?????? ? ??? ????? ????? ????? ?????? ?????. ????? ??? ??? ???? ?????? ??????? ?? ???? ???? ?????? ??? 864 ????? ???? ????? ??? ????? ?????? ????? ????? ????? ?????? ?????.??? ??? ??????? ????????? ?????? ??? ?????? ????? ?? ????? ???????? ?????? ???? ?????? ???? ????? ???? ??? ??? ???? ??????.???? ????? ????? ???????? ?????? ?? ?????? ??????? ??????? ???? ????? ?? ???? ?????? ? ???????? ??? ???????? ??????? ?? ???? ??????.
???? ??????? ????? ?????? ????????? ???????? ??? ????? ?????? ?????? ??????? ?????? ??????. ???? ?????? ???? ??????? ???? ???? ???? ?????.
???? ??????
● ????? ????
● ???? ???? ?????
● ???? ????????
● ???? ???? ????? ?????? ?????? ???????
● ???? ?????? ?????? ???? ?????? ??? ???????
???????? ???????

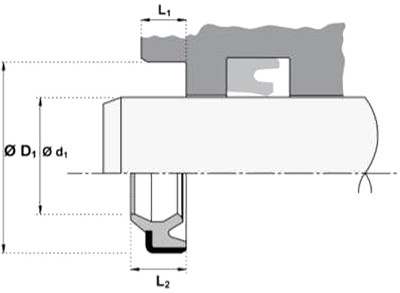

| Фd1 | ФD1 | L1 | L2 | PART No. |
| 25 | 35 | 5.0 | 8.0 | 8640250 |
| 30 | 40 | 5.0 | 8.0 | 8640300 |
| 30 | 42 | 6.0 | 9.0 | 8640300 |
| 35 | 45 | 7.0 | 10.0 | 8640350 |
| 35 | 47 | 7.0 | 10.0 | 8640351 |
| 40 | 50 | 5.0 | 8.0 | 8640400 |
| 40 | 52 | 7.0 | 10.0 | 8640401 |
| 45 | 55 | 7.0 | 10.0 | 8640450 |
| 45 | 57 | 7.0 | 10.0 | 8640451 |
| 50 | 62 | 7.0 | 10.0 | 8640500 |
| 55 | 69 | 8.0 | 11.0 | 8640550 |
| 60 | 74 | 8.0 | 11.0 | 8640600 |
| 65 | 79 | 8.0 | 11.0 | 8640650 |
| 70 | 84 | 8.0 | 11.0 | 8640700 |
| 75 | 89 | 8.0 | 11.0 | 8640750 |
| 80 | 94 | 8.0 | 11.0 | 8640800 |
| 85 | 94 | 8.0 | 11.0 | 8640850 |
| 90 | 104 | 8.0 | 11.0 | 8640900 |
| 95 | 109 | 8.0 | 11.0 | 8640950 |
| 100 | 114 | 8.0 | 11.0 | 8641000 |
| 110 | 126 | 9.0 | 12.0 | 8641100 |
| 120 | 136 | 9.0 | 12.0 | 8641200 |
| 130 | 146 | 9.0 | 12.0 | 8641300 |
| 135 | 155 | 10.0 | 14.0 | 8641350 |
| 140 | 160 | 10.0 | 14.0 | 8641400 |
| 150 | 170 | 10.0 | 14.0 | 8641500 |
| 160 | 180 | 10.0 | 14.0 | 8641600 |
